Product Description

Allavino Vite Series 554 Bottle Tall Dual Zone Side-by-Side Wine Refrigerators with Stainless Steel Doors

The 2X-YHWR305-1S20 is designed for serious wine collectors who require substantial storage capacity in an elegant, floor-standing format. The system consists of two separate single-zone YHWR305 refrigerators, positioned side by side with opposing door hinges. Each cabinet has its own digital temperature control, allowing the two sections to be maintained at different temperatures for different types of wine.

Allavino's Tru-Vino Temperature Control Technology is designed to minimize temperature and humidity fluctuations, helping create a stable environment for wine storage. The digital controls provide a temperature range of 41°F to 72°F, giving users flexibility for white-wine serving temperatures as well as longer-term red-wine storage.

Please note: This model is a combination of two separate refrigerator units, not a single cabinet. Both units need to be plugged into their own electrical connections.

Features

  • High-capacity wine storage — Allavino currently rates the system for up to 554 bottles, while BeverageFactory lists up to 610 bottles depending on the racking configuration.
  • Two independent temperature zones — The side-by-side system combines two single-zone wine refrigerators, allowing each cabinet to be set independently.
  • Tru-Vino temperature technology — Helps maintain consistent temperature and humidity while minimizing fluctuations.
  • Wide temperature range — Digital controls allow settings from 41°F to 72°F.
  • Digital temperature displays — Push-button controls make it easy to monitor and adjust the temperature of each cabinet.
  • Thick hardwood shelving — Durable wood shelves provide strong support for large wine collections.
  • Adjustable shelving — Shelves can be repositioned in approximately 1¼-inch increments to accommodate different bottle sizes.
  • Glide-out shelf system — Ball-bearing tracks allow shelves to extend smoothly, providing convenient access to bottles.
  • High-density bottle storage — BeverageFactory specifies that each sliding shelf can accommodate up to 28 standard bottles under its specified bottle dimensions.
  • Large-bottle capability — The bottom shelf can accommodate larger magnum bottles or up to 25 standard bottles.
  • Flexible bottle arrangement — The racking system is designed to accommodate varying bottle diameters and shapes.
  • Fan-forced cooling — Internal fans circulate air to minimize temperature differences throughout the cabinet and accelerate initial cooling.
  • Frost-free operation — Continuous air circulation helps prevent frost accumulation and eliminates routine manual defrosting.
  • Blue LED interior lighting — Provides low-heat illumination for viewing and selecting bottles.
  • UV-protective low-E glass — Helps block harmful UV light while improving insulation and reducing temperature fluctuations.
  • Activated charcoal air filter — Helps prevent unwanted odors from entering the cabinet and potentially affecting wine through the cork.
  • Quiet inverted compressor — Designed for quiet operation with minimal vibration and disturbance.
  • Stainless-steel-framed glass doors — Provides a premium appearance and allows the wine collection to remain visible.
  • Opposing French-door hinges — The two doors are hinged on opposite sides to create the side-by-side configuration.
  • Locking doors — Provides additional security for the stored collection.
  • Black interior and cabinet — Creates a dark, wine-cellar-style presentation.
  • Freestanding construction — Designed primarily as a standalone wine refrigerator rather than a built-in appliance.
  • Two separate electrical connections — Because the system consists of two individual refrigerators, both units need to be plugged in separately.

Allavino Vite Series Tall Dual Zone Side-by-Side Wine Refrigerators with Stainless Steel Doors Specifications

    Specification Details
    Brand Allavino
    Series Vite II
    Model / SKU 2X-YHWR305-1S20
    Product Type Side-by-side wine refrigerator
    Configuration 2 × YHWR305 single-zone wine refrigerators
    Finish Stainless steel frame / black cabinet
    Bottle Capacity — Allavino Up to 554 bottles
    Bottle Capacity — BeverageFactory Up to 610 bottles
    Cooling Zones 2 independent zones
    Temperature Range 41°F–72°F
    Temperature Control Digital adjustable thermostat
    Cooling Technology Tru-Vino
    Cooling System Compressor
    Compressor Type Inverted compressor
    Refrigerant R600a (isobutane)
    Defrost System Automatic
    Cooling Method Fan-forced
    Maximum Ambient Temperature 90°F

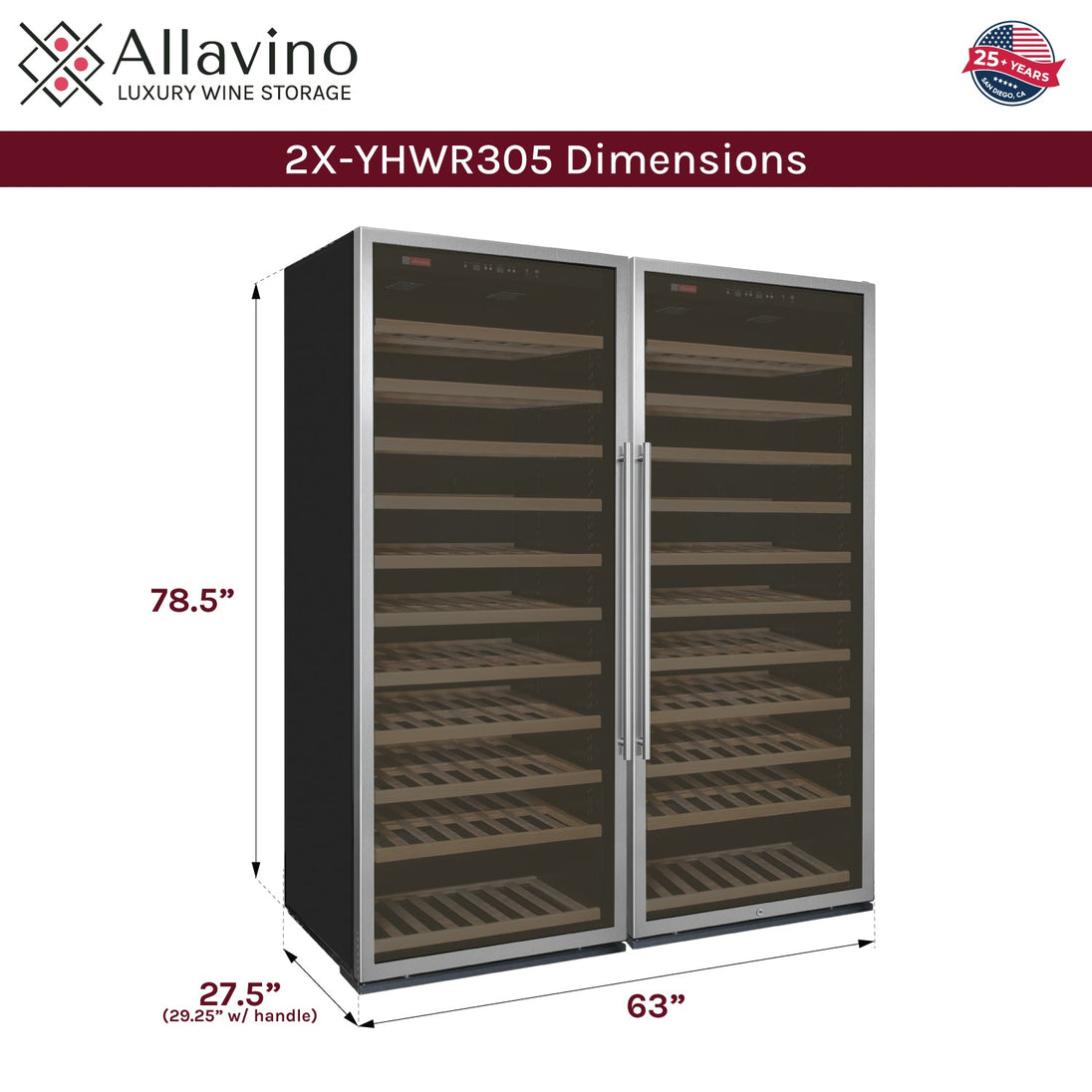

    Overall Width 63.0 in
    Overall Height 78.5 in
    Overall Depth 27.5 in
    Depth with Handle 29.25 in
    Unit Weight 650 lb total / 325 lb each
    Shipping Weight 753 lb total / 376.5 lb each
    Shelf Count — Allavino 22 shelves/drawers
    Shelf Count — BeverageFactory 20 storage shelves
    Shelf Material Hardwood
    Shelf Type Wood presentation / slat shelves
    Shelves Removable Yes
    Shelves Adjustable Yes
    Shelf Adjustment Approximately 1.25 in increments
    Glide-Out Shelves Yes
    Glide Mechanism Ball-bearing / roller assemblies
    Standard Bottle Capacity per Sliding Shelf Up to 28 bottles
    Bottom Shelf Capacity Up to 25 standard bottles / larger magnums
    Interior Color Black
    Interior Lighting Blue LED
    Air Filter Activated charcoal
    Number of Doors 2
    Door Type Glass
    Door Frame Stainless steel
    Door Handle Towel bar
    Door Configuration French doors / opposing hinges
    Doors Reversible No
    UV-Protective Glass Yes
    Low-E Glass Yes
    Security Lock Yes
    Self-Closing Doors No
    Built-In Capable No
    Freestanding Yes
    Custom Panel Compatible No
    Beverage Center No
    Commercial Use Yes
    Outdoor Use No
    ADA Compliant No
    Energy Star Rated No
    Front Ventilation Allavino: Yes; BeverageFactory: No
    Electrical Requirement 115V / 60Hz
    Current Draw 2.3 A per unit
    Power Connections 2 separate connections — one for each refrigerator
    Labor Warranty 1 year
    Parts Warranty 1 year
    Compressor Warranty 5 years, parts only
