Product Description

Product Description

The Big Ass Fans Powerfoil D 12-Foot HVLS Ceiling Fan is a commercial and industrial air circulation system designed for large indoor facilities. Its six aluminum airfoils are shaped with aerodynamic winglets to move substantial amounts of air while maintaining smooth and quiet operation.

This configuration features a 12-foot diameter, 2.5 HP motor, 380–480V three-phase power, and direct-drive operation. The Powerfoil D uses a powerful permanent-magnet motor designed for efficient, low-noise performance and is suitable for facilities that need dependable overhead air movement.

Key Features

• 12-foot fan diameter

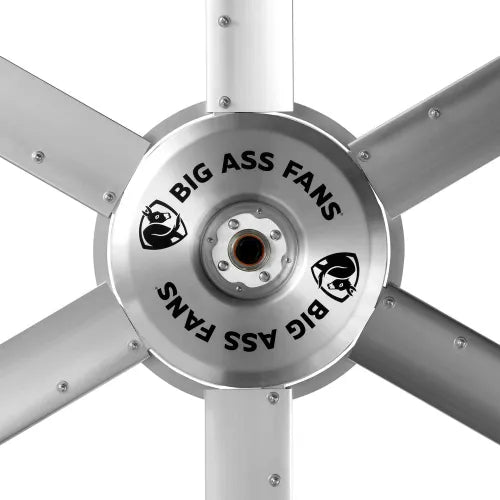

• Six patented aluminum airfoils

• Aerodynamic winglets for efficient airflow

• Integrated airfoil safety restraints

• 2.5 HP motor

• 380–480V three-phase configuration

• Variable-speed operation

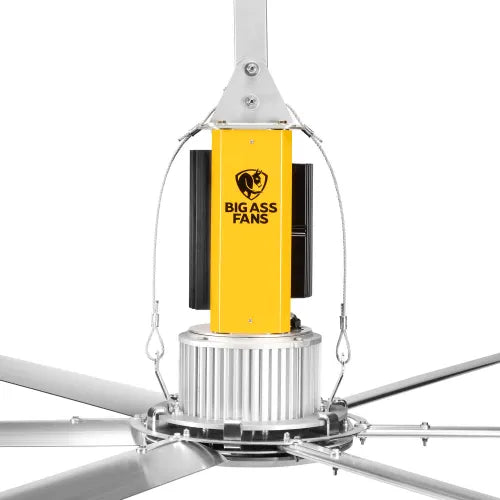

• Powerful permanent-magnet motor

• Direct-drive design

• Virtually silent operation

• Grade 8 safety hardware

• Fire suppression system integration

• Multiple mounting options

• Designed for energy-efficient air circulation

Specifications

Brand: Big Ass Fans

Model: Powerfoil D

Product Type: HVLS Industrial Ceiling Fan

Fan Diameter: 12 ft / 144 in

Number of Blades: 6

Blade Material: Aluminum

Motor Horsepower: 2.5 HP

Voltage: 380–480V

Phase: 3

Speed: Up to 135 RPM

Drive Type: Direct Drive

Operating Type: Variable Speed

Cooling Area: Approximately 2,500 ft²

Downrod Length: 36 in

Mounting Location: Ceiling

Environment: Indoor / Industrial

The 12-foot Powerfoil D is listed under the Powerfoil D product line with 380–480V three-phase configurations.

What's Included

• Big Ass Fans Powerfoil D fan assembly

• Six aluminum airfoils

• Permanent-magnet motor

• Extension tube

• Wall control

• Beam/joist mounting components

• Safety restraints

• Mounting hardware

Ideal For

• Warehouses

• Manufacturing facilities

• Distribution centers

• Automotive facilities

• Commercial buildings

• Agricultural buildings

• Workshops

• Logistics facilities

• Industrial work areas

• Large indoor spaces requiring continuous air circulation

Why Choose the Powerfoil D?

The Powerfoil D 12-foot HVLS fan combines high-volume air circulation with a quiet, efficient direct-drive motor. Its six aluminum airfoils, permanent-magnet motor, variable-speed operation, and 380–480V three-phase configuration make it a strong choice for large commercial and industrial facilities.

The direct-drive design eliminates the need for a conventional gearbox, while the aerodynamic airfoils and integrated safety features provide reliable overhead airflow for demanding indoor environments.
