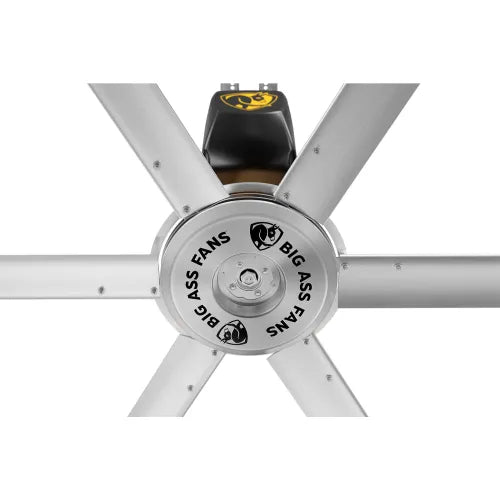

The Big Ass Fans Powerfoil 6 16-Foot HVLS Industrial Ceiling Fan is designed to provide high-volume air circulation across large indoor spaces such as warehouses, manufacturing facilities, distribution centers, and industrial work areas. Its six aluminum airfoils with winglets are engineered to move large amounts of air efficiently while helping minimize wind noise.

This configuration features a 16-foot diameter, 1-1/2 HP gear-driven motor, 208V single-phase power, and variable-speed operation. It can deliver approximately 109,000 CFM while covering around 6,400 square feet, making it suitable for facilities that need broad and consistent overhead airflow.

Key Features

• 16-foot fan diameter

• Six patented aluminum airfoils with winglets

• Approximately 109,000 CFM airflow

• 1-1/2 HP industrial motor

• 208V single-phase configuration

• Variable-speed operation

• Digital variable-speed controller with OLED display

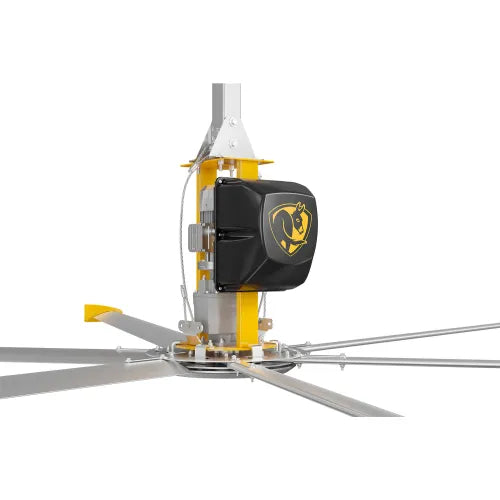

• Sealed helical gearbox

• Gear-driven design

• Integrated airfoil safety restraints

• Redundant safety features

• Fully wired and factory tested

• Lifetime-lubricated motor

• Durable bearings and double-lip seals

• Multiple mounting options

• Designed for quiet, efficient air circulation

Specifications

Brand: Big Ass Fans

Model: Powerfoil 6

Manufacturer Part Number: F-PF63-1602S34

Product Type: HVLS Industrial Ceiling Fan

Fan Diameter: 16 ft

Number of Blades: 6

Blade Material: Aluminum

Airflow: Up to 109,000 CFM

Coverage Area: 6,400 ft²

Motor Horsepower: 1-1/2 HP

Voltage: 208V

Phase: 1

Frequency: 50/60 Hz

Amperage: 20 A

Maximum Speed: 86.1 RPM

Drive Type: Gear Driven

Operating Type: Variable Speed

Mounting Options: I-Beams, Bar Joists, Purlins

Environment: Indoor

Weight: 204 lbs

Warranty: 7 years

What's Included

• Big Ass Fans Powerfoil 6 fan assembly

• Six aluminum airfoils

• 1-1/2 HP industrial motor and gearbox

• 2-foot extension tube

• Standard wired controller

• Beam/mounting hardware

• Safety cables and airfoil restraints

• Factory-wired electrical components

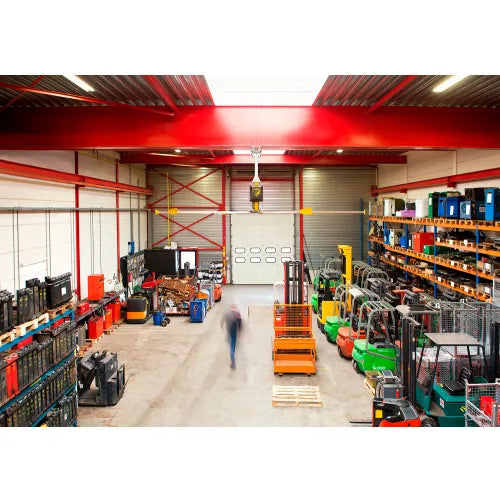

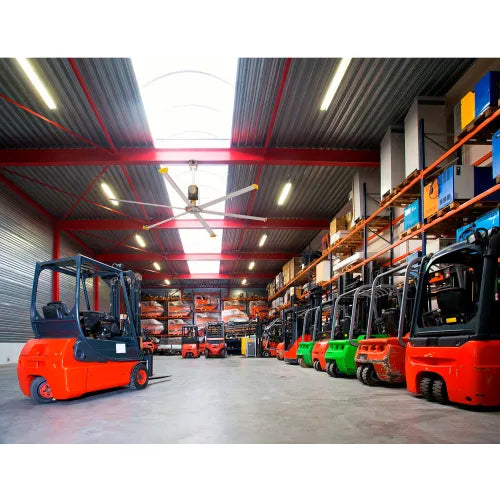

Ideal For

• Warehouses

• Manufacturing facilities

• Distribution centers

• Logistics facilities

• Automotive facilities

• Agricultural buildings

• Aviation facilities

• Workshops

• Large commercial spaces

• Large industrial work areas

Why Choose the Powerfoil 6?

The Powerfoil 6 16-foot HVLS fan provides powerful overhead air circulation for large facilities. Its six aluminum airfoils, 1-1/2 HP gear-driven motor, variable-speed control, and 208V single-phase configuration make it a practical choice for facilities that need wide-area airflow without using a three-phase electrical configuration.

With approximately 109,000 CFM of airflow and 6,400 square feet of coverage, this model is designed to provide consistent air movement across expansive indoor spaces while maintaining a durable, low-maintenance design.
