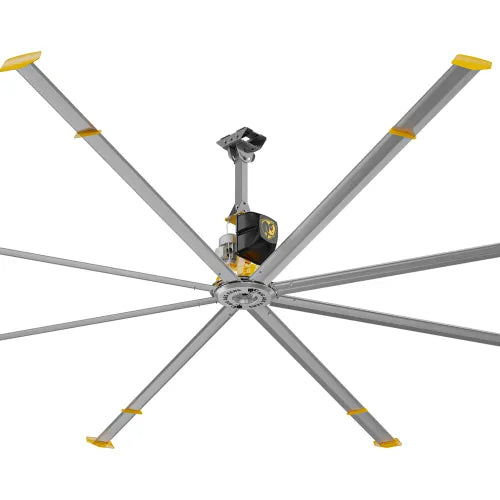

The Big Ass Fans Powerfoil X4 16-Foot HVLS Ceiling Fan is a heavy-duty air circulation system designed for large warehouses, manufacturing facilities, distribution centers, and other demanding indoor environments. Its eight patented aluminum airfoils are engineered to produce strong, consistent airflow across large areas while maintaining quiet operation.

This configuration features a 16-foot diameter, 1.9 HP motor, and 460V three-phase power. It uses a sealed NitroSeal™ gearbox and integrated variable frequency drive for reliable, low-maintenance operation. The Powerfoil X4 also carries an IP56 rating, providing protection against dust, debris, and high-pressure water jets.

Key Features

• 16-foot fan diameter

• Eight patented aluminum airfoils

• Aerodynamic airfoil and winglet design

• 1.9 HP motor

• 460V three-phase configuration

• Variable-speed operation

• Integrated variable frequency drive

• Sealed NitroSeal™ gearbox

• IP56-rated construction

• Standard wired controller with OLED touchscreen

• Redundant airfoil retention system

• Grade 8 safety hardware

• Safety cables

• Fire suppression system integration

• Multiple mounting options

• Designed for quiet operation below 55 dBA

Specifications

Brand: Big Ass Fans

Model: Powerfoil X4

Product Type: HVLS Industrial Ceiling Fan

Fan Diameter: 16 ft / 192 in

Number of Blades: 8

Blade Material: Aluminum

Motor Horsepower: 1.9 HP

Voltage: 460V

Phase: 3

Frequency: 50/60 Hz

Required Circuit: 10 A

Maximum Speed: 96 RPM

Drive Type: Gear Driven

Gearbox: NitroSeal™

Operating Type: Variable Speed

Protection Rating: IP56

Maximum Operating Temperature: 122°F

Weight: 264 lbs

Mounting Options: I-Beam, Bar Joist, Z-Purlin, Solid Beam/Glulam

Environment: Indoor / Industrial

What's Included

• Big Ass Fans Powerfoil X4 fan assembly

• Eight aluminum airfoils

• 1.9 HP motor

• NitroSeal™ gearbox

• Integrated variable frequency drive

• Standard wired controller

• Extension tube

• Mounting components

• Safety cables and airfoil restraints

• Required mounting hardware

Ideal For

• Warehouses

• Manufacturing facilities

• Distribution centers

• Logistics facilities

• Automotive facilities

• Agricultural buildings

• Workshops

• Large commercial spaces

• Industrial work areas

• Large indoor facilities requiring high-volume air circulation

Why Choose the Powerfoil X4?

The Powerfoil X4 16-foot HVLS fan is designed for facilities that need powerful and consistent overhead airflow across a large area. Its eight aluminum airfoils, 1.9 HP motor, variable-speed control, NitroSeal™ gearbox, and IP56 protection provide a combination of airflow, durability, and low-maintenance operation.

The 460V three-phase configuration is designed for compatible industrial electrical systems, while the integrated VFD allows the fan speed to be adjusted according to the facility's airflow requirements.
