Product Description

Product Description

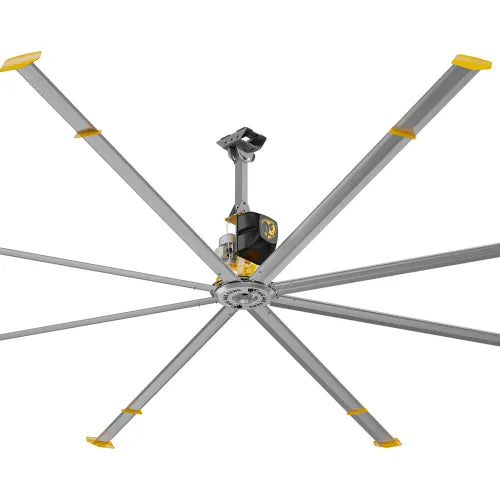

The Big Ass Fans Powerfoil X4 12-Foot HVLS Ceiling Fan is a heavy-duty air circulation system designed for large industrial and commercial spaces. Its eight patented airfoils are engineered to move high volumes of air efficiently while maintaining smooth and quiet operation.

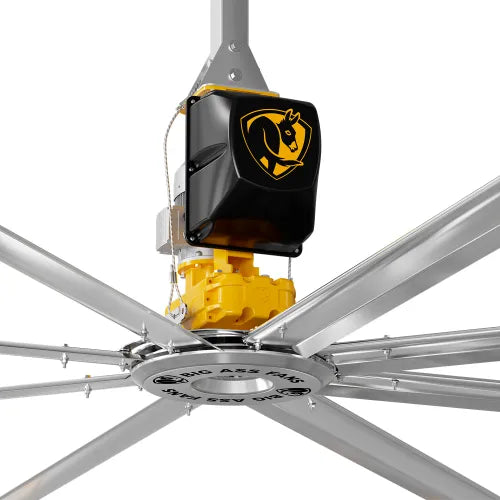

This configuration has a 12-foot diameter, 1.9 HP motor, and 208V single-phase input power. The Powerfoil X4 uses a sealed NitroSeal™ gearbox, integrated variable frequency drive, and a full-fan IP56 rating, making it well suited for demanding indoor environments where durability and reliable airflow are important.

Key Features

• 12-foot fan diameter

• Eight patented aluminum airfoils

• Aerodynamic airfoil and winglet design

• 1.9 HP motor

• 208V single-phase input

• Variable-speed operation

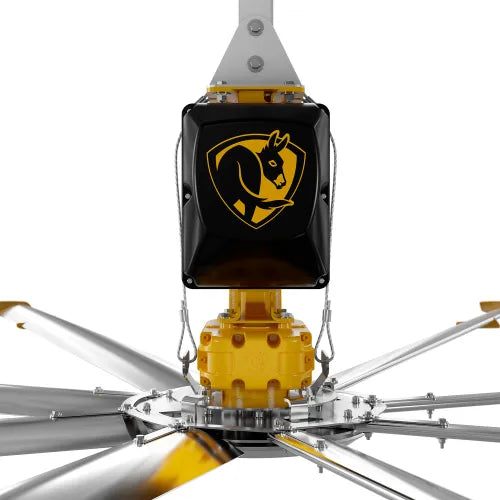

• Integrated variable frequency drive

• Maintenance-free NitroSeal™ gearbox

• IP56-rated construction

• Standard wired controller with OLED touchscreen

• Multiple mounting options

• Aircraft-grade steel safety cables

• Grade 8 safety hardware

• Redundant airfoil retention system

• Fire suppression system integration

• Designed for quiet operation below 55 dBA

Specifications

Brand: Big Ass Fans

Model: Powerfoil X4

Product Type: HVLS Industrial Ceiling Fan

Fan Diameter: 12 ft

Number of Blades: 8

Blade Material: Aluminum

Motor Horsepower: 1.9 HP

Voltage: 208V

Phase: 1

Frequency: 50/60 Hz

Required Circuit: 20 A

Maximum Speed: 130 RPM

Drive Type: Gear Driven

Gearbox: NitroSeal™

Operating Type: Variable Speed

Protection Rating: IP56

Maximum Operating Temperature: 122°F

Maximum Weight: 245 lbs

Mounting Options: I-Beam, Bar Joist, Solid Beam, Purlin

Environment: Indoor / Industrial

What's Included

• Big Ass Fans Powerfoil X4 fan assembly

• Eight aluminum airfoils

• 1.9 HP motor

• NitroSeal™ gearbox

• Integrated variable frequency drive

• Standard wired controller

• Extension tube

• Beam/joist mounting components

• Safety cables and airfoil restraints

Ideal For

• Warehouses

• Manufacturing facilities

• Distribution centers

• Automotive facilities

• Workshops

• Logistics facilities

• Industrial buildings

• Commercial spaces

• Agricultural facilities

• Large indoor work areas

Why Choose the Powerfoil X4?

The Powerfoil X4 12-foot HVLS fan combines powerful air movement with a rugged industrial design. Its eight aluminum airfoils, 1.9 HP motor, variable-speed control, sealed NitroSeal™ gearbox, and IP56 protection make it a strong choice for demanding facilities.

The 208V single-phase configuration can operate from a single-phase supply while the fan's integrated VFD provides the three-phase output required by the motor.
