Product Description

Product Description

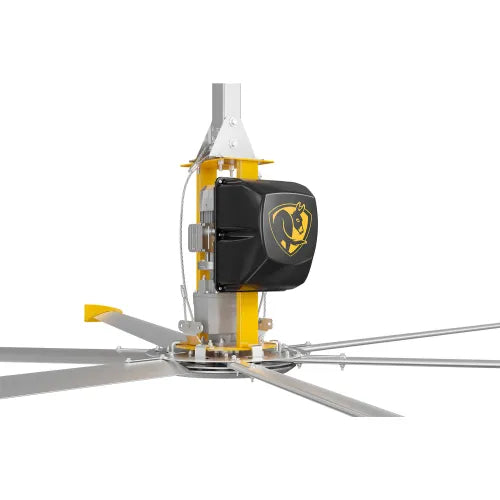

The Big Ass Fans Powerfoil 6 20-Foot HVLS Industrial Ceiling Fan is designed to provide powerful overhead airflow across large warehouses, manufacturing facilities, distribution centers, and other expansive indoor spaces. It uses six aluminum airfoils with aerodynamic winglets to move high volumes of air while helping reduce wind noise.

This version features a 20-foot diameter, 2 HP gear-driven motor, 208V three-phase power, and variable-speed control. It delivers up to 159,779 CFM and covers approximately 10,000 square feet. The fan arrives factory-wired and tested and uses a sealed helical gearbox for reliable, low-maintenance operation.

Key Features

• 20-foot fan diameter

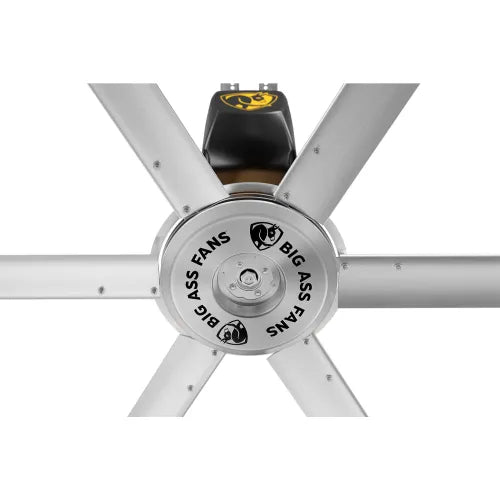

• Six patented aluminum airfoils

• Aerodynamic winglets

• Up to 159,779 CFM airflow

• 2 HP industrial motor

• 208V three-phase configuration

• Variable-speed operation

• Digital speed controller with OLED screen

• Sealed helical gearbox

• Gear-driven design

• Lifetime-lubricated motor

• Durable bearings and double-lip seals

• Integrated airfoil safety restraints

• Redundant safety features

• Factory-wired and tested

• Multiple mounting options

• Designed for quiet operation

Specifications

Brand: Big Ass Fans

Model: Powerfoil 6

Manufacturer Part Number: F-PF63-2003S34S65

Product Type: HVLS Industrial Ceiling Fan

Fan Diameter: 20 ft

Number of Blades: 6

Blade Material: Aluminum

Airflow: Up to 159,779 CFM

Coverage Area: 10,000 ft²

Motor Horsepower: 2 HP

Voltage: 208V

Phase: 3

Frequency: 50/60 Hz

Amperage: 15 A

Maximum Speed: 70.3 RPM

Drive Type: Gear Driven

Operating Type: Variable Speed

Mounting Options: I-Beams, Bar Joists, Purlins

Environment: Indoor

Weight: 217 lbs

Color: Silver/Yellow

Warranty: 7 years

What's Included

• Big Ass Fans Powerfoil 6 fan assembly

• Six aluminum airfoils

• 2 HP industrial motor and gearbox

• Digital variable-speed controller

• VFD components

• Extension tube

• Mounting hardware

• Safety cables and airfoil restraints

• Factory-wired electrical components

Ideal For

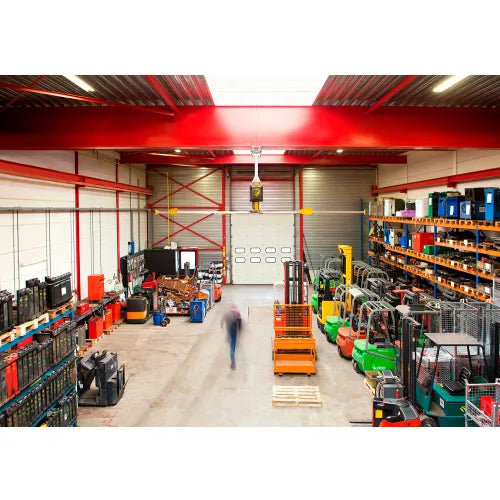

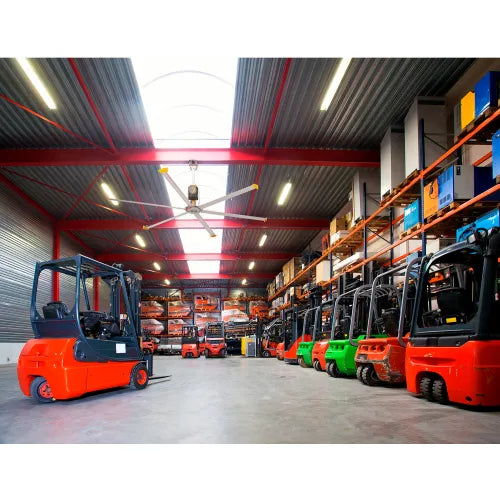

• Warehouses

• Manufacturing facilities

• Distribution centers

• Logistics facilities

• Agricultural buildings

• Automotive facilities

• Large workshops

• Commercial buildings

• Industrial work areas

• Large indoor spaces

Why Choose the Powerfoil 6?

The Powerfoil 6 20-foot HVLS fan is a strong option for facilities requiring wide-area air circulation. Its six aluminum airfoils, 2 HP motor, 208V three-phase configuration, and variable-speed control provide powerful and adjustable airflow.

With up to 159,779 CFM and approximately 10,000 square feet of coverage, this configuration is designed for large facilities where consistent overhead air movement is important.
