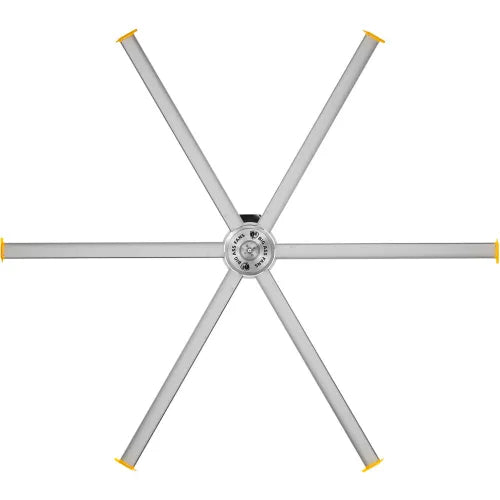

The Big Ass Fans Powerfoil 6 16-Foot HVLS Industrial Ceiling Fan is designed to provide powerful overhead air circulation across large warehouses, manufacturing facilities, distribution centers, and other expansive indoor spaces. Its six aluminum airfoils feature aerodynamic winglets that help maximize airflow while reducing wind noise.

This configuration features a 16-foot diameter, 1-1/2 HP gear-driven motor, 208V three-phase power, and variable-speed control. It delivers up to 104,315 CFM and provides approximately 6,400 square feet of coverage. The fan comes pre-wired and factory tested for a more straightforward installation.

Key Features

• 16-foot fan diameter

• Six aluminum airfoils with winglets

• Up to 104,315 CFM airflow

• 1-1/2 HP industrial motor

• 208V three-phase configuration

• Variable-speed operation

• Digital speed controller with OLED screen

• Sealed helical gearbox

• Gear-driven construction

• Integrated airfoil safety restraints

• Redundant safety features

• Pre-wired and factory tested

• Lifetime-lubricated motor

• Durable bearings and double-lip seals

• Multiple mounting options

• Designed for quiet and efficient operation

Specifications

Brand: Big Ass Fans

Model: Powerfoil 6

Manufacturer Part Number: F-PF63-1603S34

Product Type: HVLS Industrial Ceiling Fan

Fan Diameter: 16 ft

Number of Blades: 6

Blade Material: Aluminum

Airflow: Up to 104,315 CFM

Coverage Area: 6,400 ft²

Motor Horsepower: 1-1/2 HP

Voltage: 208V

Phase: 3

Frequency: 50/60 Hz

Amperage: 15 A

Maximum Speed: 86.1 RPM

Drive Type: Gear Driven

Operating Type: Variable Speed

Mounting Options: I-Beams, Bar Joists, Purlins

Environment: Indoor

Weight: 204 lbs

Color: Silver/Yellow

Warranty: 7 years

What's Included

• Big Ass Fans Powerfoil 6 fan assembly

• Six aluminum airfoils

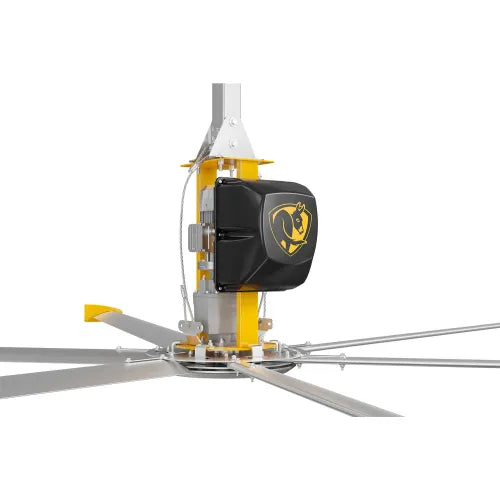

• Industrial 1-1/2 HP motor and gearbox

• Integrated variable frequency drive

• Digital variable-speed controller

• Extension tube

• Mounting hardware

• Safety cables and airfoil restraints

• Factory-wired electrical components

Ideal For

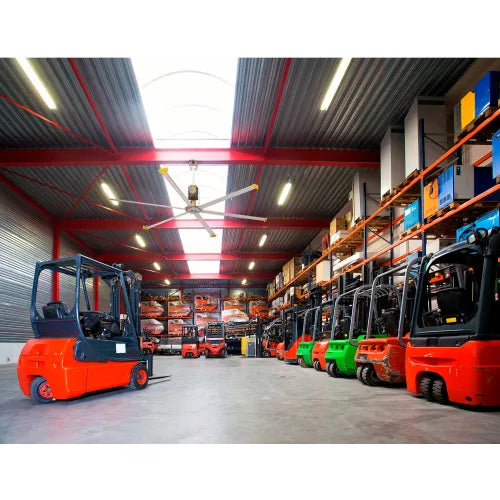

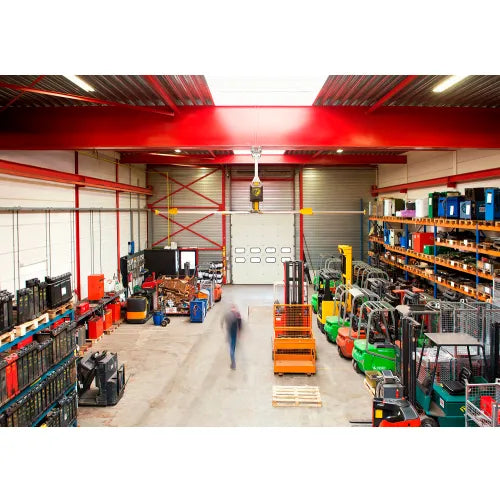

• Warehouses

• Manufacturing facilities

• Distribution centers

• Logistics facilities

• Automotive facilities

• Agricultural buildings

• Commercial buildings

• Workshops

• Large industrial work areas

• Large indoor spaces requiring high-volume air circulation

Why Choose the Powerfoil 6?

The Powerfoil 6 16-foot HVLS fan is built for facilities that need broad, consistent air movement. Its six aluminum airfoils, 1-1/2 HP gear-driven motor, variable-speed control, and 208V three-phase configuration provide a practical combination of airflow, coverage, and industrial durability.

With up to 104,315 CFM of airflow and approximately 6,400 square feet of coverage, this model is suited to large facilities where reliable overhead circulation is a priority.
