Product Description

Product Description

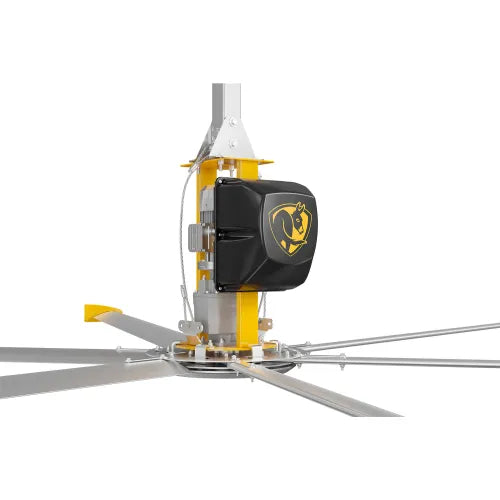

The Big Ass Fans Powerfoil 6 12-Foot HVLS Industrial Ceiling Fan is designed to provide powerful, wide-area air circulation in warehouses, manufacturing facilities, and other large indoor spaces. Its six aluminum airfoils use aerodynamic winglets to move high volumes of air while helping minimize wind noise.

This model features a 12-foot diameter, 1-1/2 HP gear-driven motor, 208V three-phase power, and variable-speed control. It provides up to 74,444 CFM of airflow and covers approximately 3,600 square feet, making it suitable for facilities that require consistent overhead air movement.

Key Features

• 12-foot fan diameter

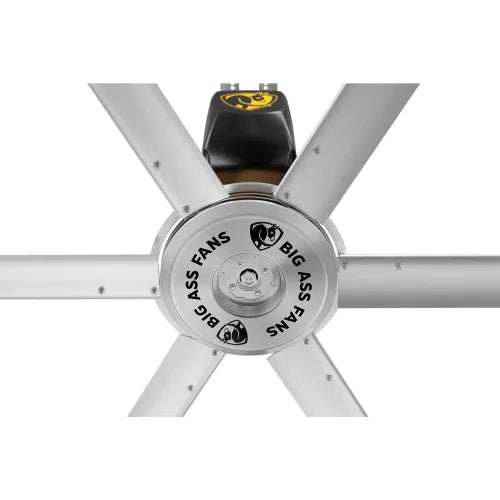

• Six patented aluminum airfoils

• Aerodynamic winglets designed to reduce wind noise

• Up to 74,444 CFM airflow

• 1-1/2 HP industrial motor

• 208V three-phase configuration

• Variable-speed operation

• Digital speed controller with OLED screen

• Sealed helical gearbox

• Integrated airfoil safety restraints

• Redundant safety features

• Factory-wired and tested

• Lifetime-lubricated motor

• Durable bearings and double-lip seals

• Multiple mounting options

• Designed for low-maintenance operation

Specifications

Brand: Big Ass Fans

Model: Powerfoil 6

Manufacturer Part Number: F-PF63-1203S34

Product Type: HVLS Industrial Ceiling Fan

Fan Diameter: 12 ft

Number of Blades: 6

Blade Material: Aluminum

Airflow: Up to 74,444 CFM

Coverage Area: 3,600 ft²

Motor Horsepower: 1-1/2 HP

Voltage: 208V

Phase: 3

Frequency: 50/60 Hz

Amperage: 15 A

Maximum Speed: 125.3 RPM

Drive Type: Gear Driven

Operating Type: Variable Speed

Mounting Options: I-Beams, Bar Joists, Purlins

Environment: Indoor

Weight: 185 lbs

Color: Silver/Yellow

Warranty: 7 years

What's Included

• Big Ass Fans Powerfoil 6 fan assembly

• Six aluminum airfoils

• Industrial 1-1/2 HP motor and gearbox

• Digital variable-speed controller

• Integrated safety restraints

• Factory-wired electrical components

• Standard mounting components

Ideal For

• Warehouses

• Manufacturing facilities

• Distribution centers

• Automotive facilities

• Workshops

• Agricultural buildings

• Commercial buildings

• Retail spaces

• Large indoor work areas

• Industrial facilities requiring high-volume air circulation

Why Choose the Powerfoil 6?

The Powerfoil 6 12-foot HVLS fan provides powerful overhead air circulation in a durable, industrial-grade design. Its six aluminum airfoils, 1-1/2 HP motor, variable-speed control, and 208V three-phase configuration make it a practical choice for large facilities that need reliable airflow.

With up to 74,444 CFM of airflow and approximately 3,600 square feet of coverage, this model delivers broad air movement while maintaining a gear-driven, low-maintenance design.
